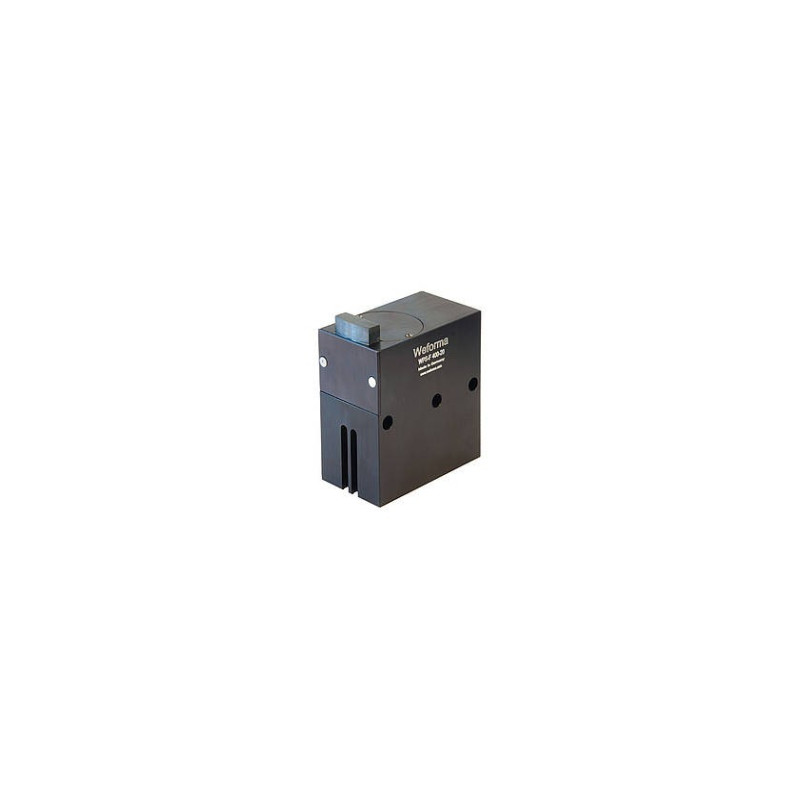

Pallet stoppers fulfill two functions in the assembly of industrial and household goods on palette loop systems: They ensure smooth deceleration of individual or several palettes which have been parked in waiting positions at set line areas in the production process, and forward them individually for transporting to the next manufacturing position. There the palette stopper again ensures a smooth deceleration to avoid damage to the manufactured parts from hard impacts. At the same time it ensures the final position is reached precisely to guarantee correct machined assembly.
Precise deceleration and separation of pallets
Masses up to 850 kg and speeds up to 40 m/min
Single acting: via return spring
Double acting (optional): pneumatic return
Housing: aluminium, black anodized
Hardened stop
Sensor for end position (optional
Special version: pallet stopper for clean room
Cl. 5 (ISO), Cl. 100 (US), Cl. 3 (VDI)
