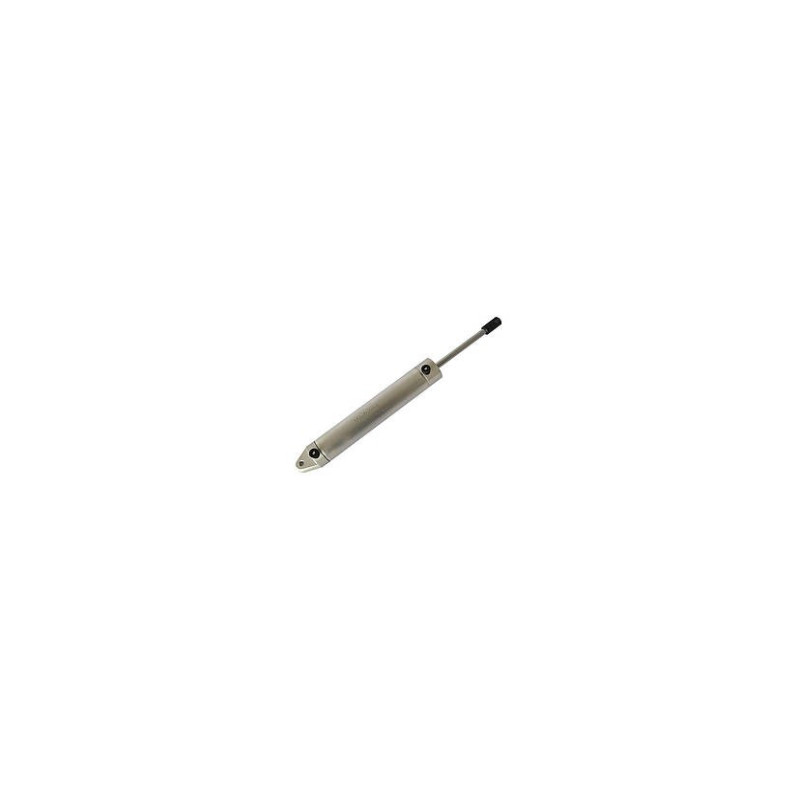

WEFORMA DOUBLE-ACTING SPEED CONTROLS WM-VD 32
Odeslat dotaz na tento produkt
Speed controls regulate speed rates in drill and milling units. Depending on the model, oil brakes can be set to a feed rate of 12 - 40 m/min or 0.015 - 15 m/min. The WV-M 1.25 feed oil brake is designed for a feed force of up to 10,000N.
- Precise adjustment in Push- and Pull direction
- Continuous adjustment over the entire stroke
- Deceleration characteristic: Double-acting
- Coating: Housing: anodised aluminium
- Material: Piston rod: hard-chrome plated
- Temperature: -20°C - +80°C
- RoHS - conform: Directive 2002/95/E
