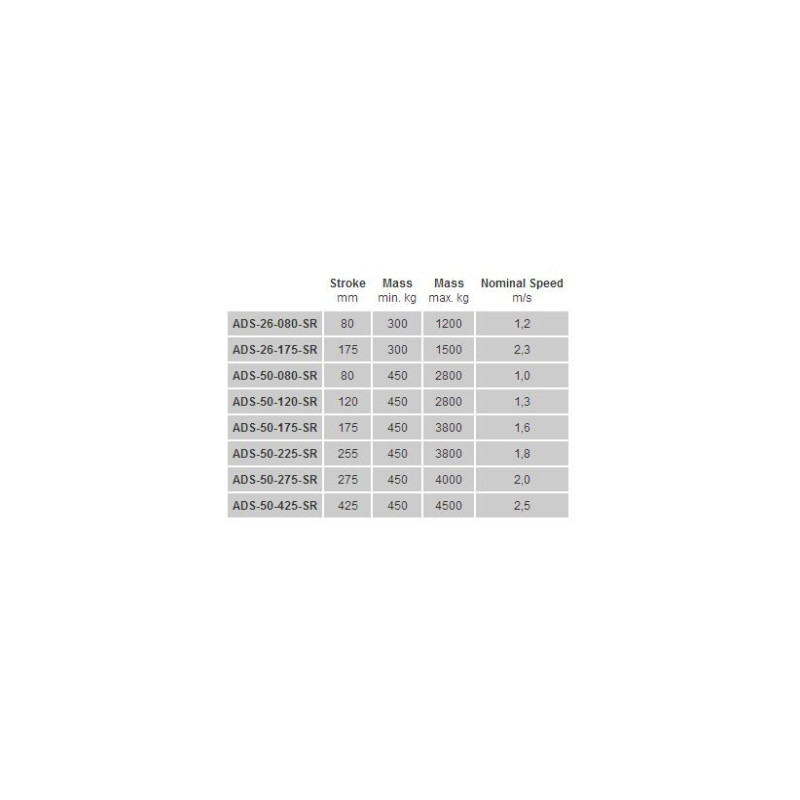

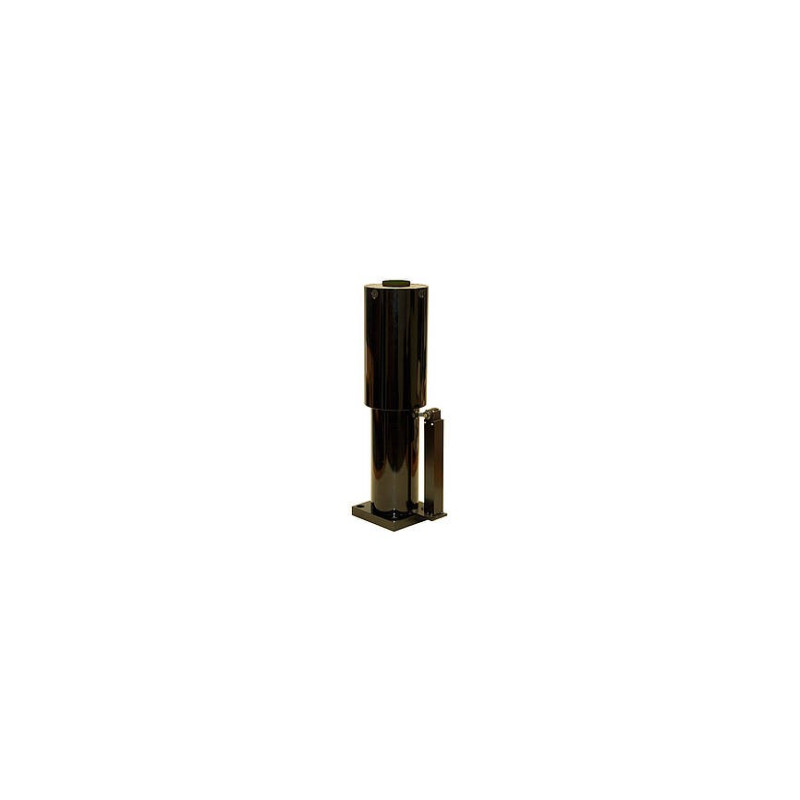

ADS shock absorbers are a safety component for passenger lifts and freight lifts. TÜV North has successfully subjected the shock absorbers to the conformity assessment pursuant to lift guideline 95/16/EU. A variant with a contact bar (ADS-ST) or with a protective pipe (ADS-SR) is available.In total, 8 different models with strokes of 80 - 425 mm are available. The shock absorbers are fitted with a safety limit switch in accordance with DIN EN 50047. The housing is painted black to protect the surfaces and the piston rods are chromed.
- Applications > Passenger and load elevators
- Protection > Housing painted, piston rod chrome plated
- Temperature > -20° - +80° C
- Security > Limit switch according DIN EN 50047
- TÜV EC type-examination > Lift directive 95/16/EC; EN 81-1/2
