ULBRICH COMBINATION SHOCK ABSORBER AND SPRING TEST MACHINE

Odeslat dotaz na tento produkt

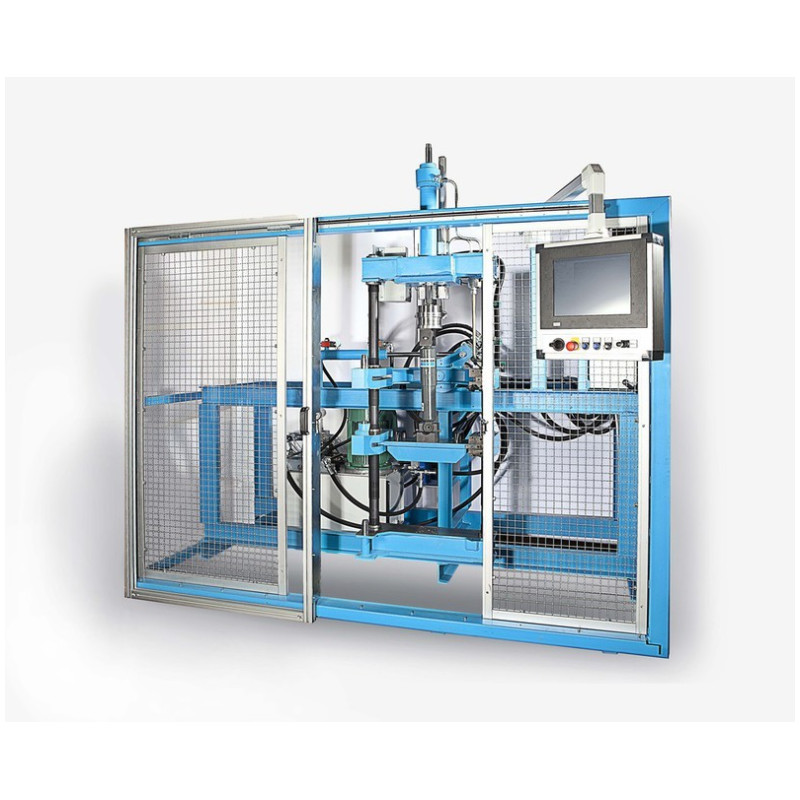

This combination machine was specially developed for use in workshops for trams, commuter trains and metro. It is not only possible to test shock absorbers in any mounting position, but also coil springs up to a test load of 50kN can be tested. Just a few simple steps and the shock absorber test bench becomes a spring testing machine.

In use as a shock absorber test bench:

• Max. Tensile force: 25 kN
• Max. Stroke: 360 mm - corresponds to +/- 180 mm from the middle position
• Max. Speed: at cyclic load 300 mm / sec.

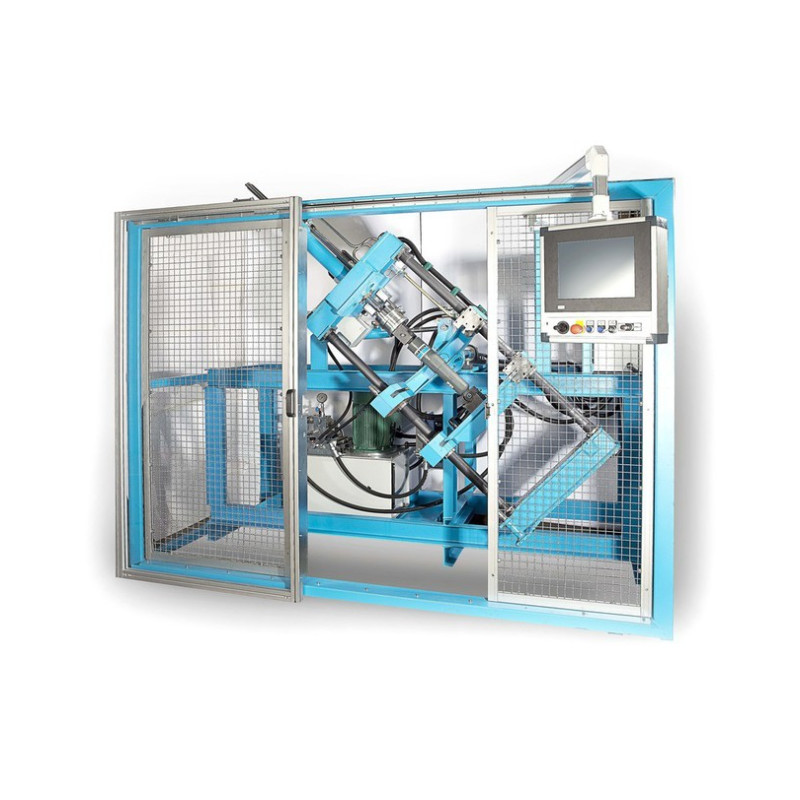

• Test position: infinitely adjustable from 0 ° to 90 °
• Max. Diameter of specimen: 440 mm
• Installed power: 7.5 kW

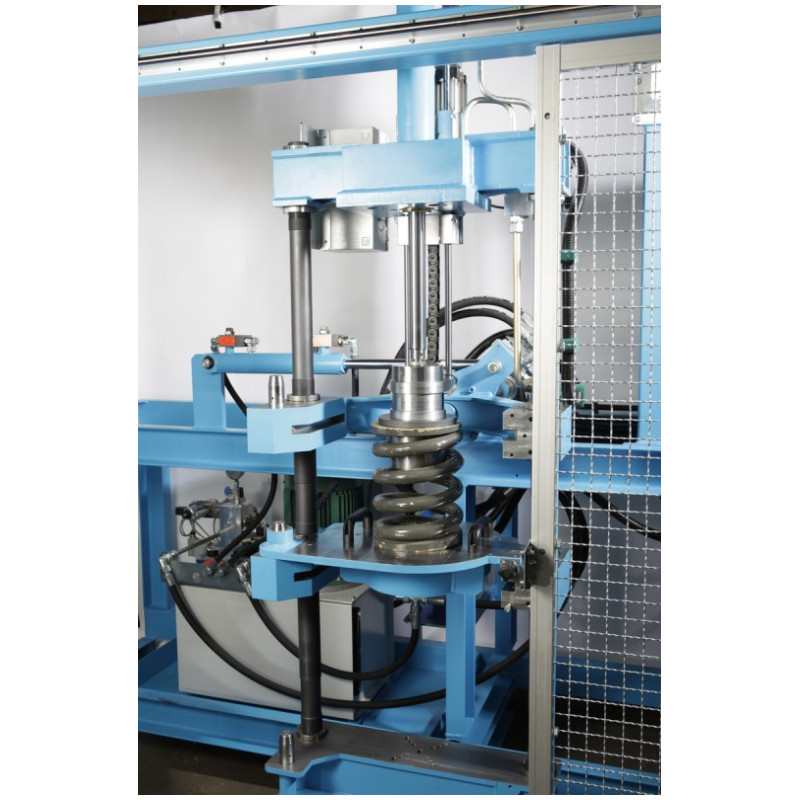

In use as a spring testing machine:

• Max. Pull-push force: 45 kN
• Max. Stroke: 360 mm
• Max. Speed: at full load 40 mm / sec.
• Test layer: usually vertical
• Max. Diameter of specimen: 440 mm
• Installed power: 7.5 kW

Pdf:

• TDS ULBRICH Combination shock absorber and spring test machine eng.pdf
