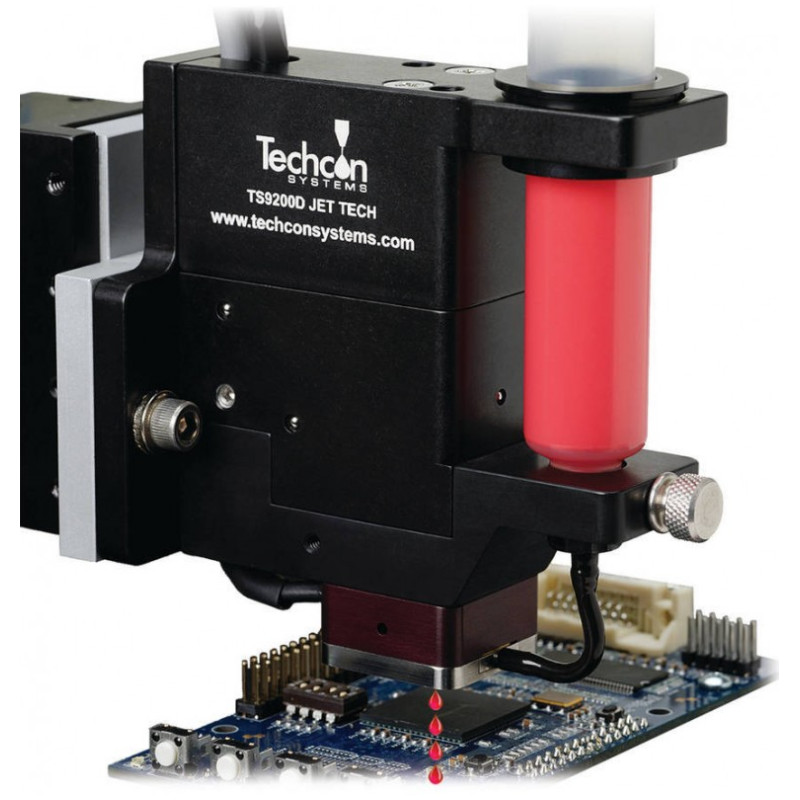

The TS9200D Jet Tech is a non-contact dispense valve capable of jetting fluid viscosities to 400,000 Cps. Jet Tech offers a fast jetting action producing hundreds of precise droplets in less than one second. The main feature of the valve is a single, easily replaceable diaphragm to eliminate dynamic fluid seals found in other jet valves. No longer is it necessary to disassemble, clean and replace worn seals, which translates into saving time and money. The diaphragm also allows fast cycle rates because of its very small mass. There is no large sliding valve stem that slows down the process. With this novel diaphragm design, the energy needed to eject a drop can be adjusted providing a wider process window.
Features:- No fluid seals to clean or replace
- Up to 300 drops/ sec
- Outstanding repeatabilty
- Viscosities up to 400K cps
- Drops as small as 10nl
- Integral heater with minimal fluid heated
- Tungsten carbide internal components for long life
- Quick and simple maintenance
Specifications:- Size Width: 50.8mm (2.00")
- Size Depth: 93.8mm (3.69")
- Size Height: 88.9mm (3.50")
- Weight: 348g (0.77lb)
- Speed: Up to 300Hz Continuous Duty
- Syringe Capacity: 5, 10, 30 and 55cc
- Minimum Shot Size: 10nl
- Viscosity Range: 1 to 400K Cps.
- Fluid Pressure: 40 psi(2.76 bar)
- Nozzle Sizes: 100µm, 125µm, 150µm, 200µm
- Jet Pressure: 35psi to 70psi (2.41 to 4.8 bar)
- Controller Interface: RS-232 & LCD Display w/ Interface
- Input/ Output: TTL Level Triggers
- Operating Temperature: 10 to 50ºC
Applications:The TS900D Jet Tech can be used in wide range of applications. Some examples of processes and applications are:
- Jetting silver epoxies for die bonding processes
- Jetting silicone phosphor in the LED assembly process
- Jetting under-fill in micro-electronic package applications on PCBA
- Jetting micro dots of UV adhesive in medical device applications
