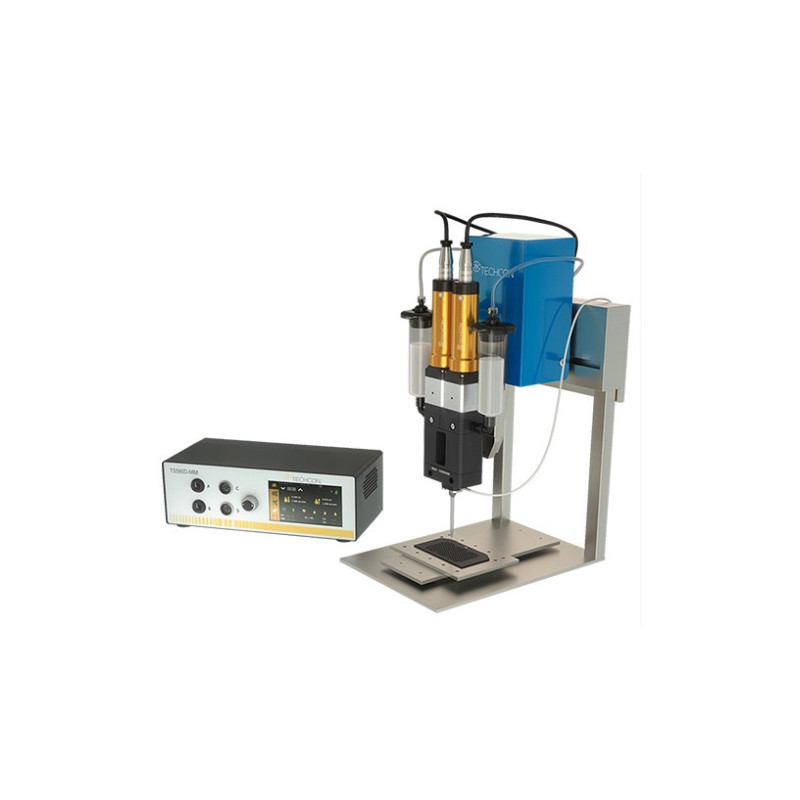

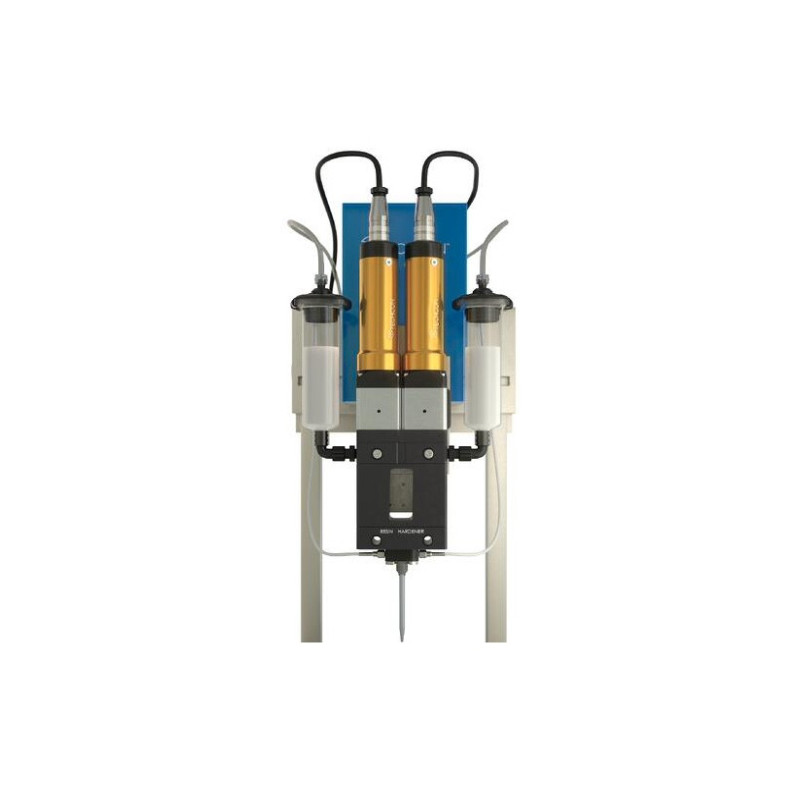

The TS8200D Series Micro-Meter Mix is a precision volumetric mixing and dispensing system for 2-component material. It consists of 2 progressive cavity pumps integrated in a fluid manifold connected to the static mixing nozzle. Part A and part B of the material is precisely fed by the progressive cavity pump with the correct ratio into the static mixing nozzle to provide accurate mixing and dispensing output.
Key Applications:- Bonding
- Glob-Top Potting and Encapsulation
- Battery Pack Sealing
- Thermal Paste Dispensing
- Filling
System Benefits:- Positive displacement technology achieves +/- 1% variation in dispense output
- A high-quality static mixer ensures proper material curing
- Efficient operation through continuous flow with adjustable flow rates
- Stator provides a positive seal up to 100 psi fluid inlet pressure
- Suck-back action to prevent material dripping
- Quick and easy cleaning to reduce down-time
- Optional sensor to monitor back pressure
