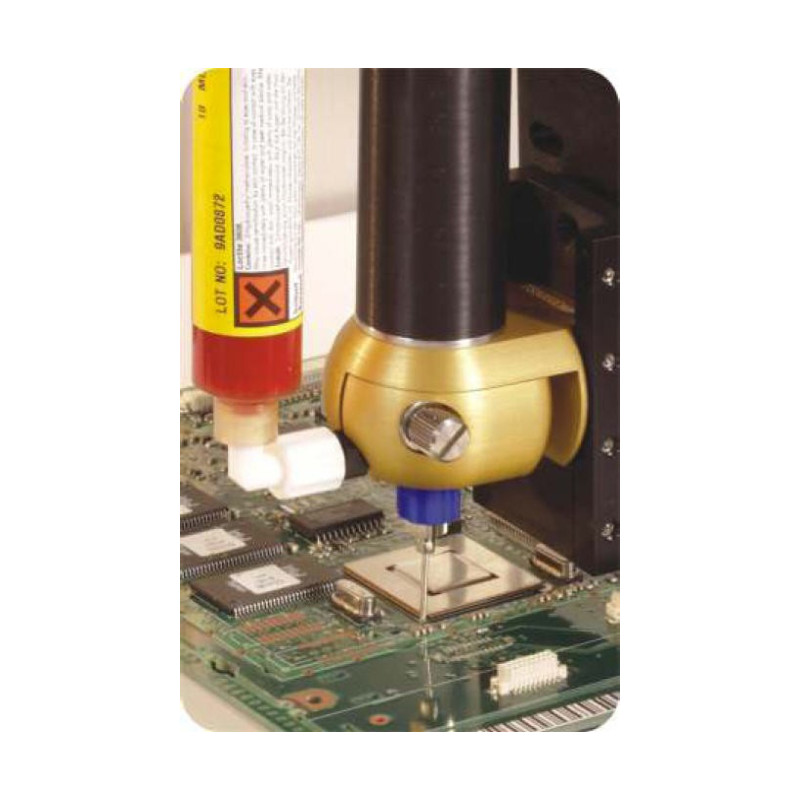

Techcon Systems' patented Disposable Material Path (DMP) valve contains a disposable feed screw for easy maintenance and reliable dispensing. With a feed screw made of Delrin, the valve is designed for use with two-compound and abrasive materials. The DMP valve has a hinged doorway in the front that opens easily so the disposable auger can be removed, disposed of, and replaced within seconds while the line is still in operation. No cleaning or refurbishment of the valve is required. The DMP is the perfect valve for applications where removing the valve for cleaning is inconvenient and costly. With the ability to remove and replace the disposable auger, the valve maintains its dispensing accuracy over a greater period of time. And, with less material buildup to reduce wear-and-tear on the motor, the valve's usable lifetime is dramatically increased.
Techcon Systems TS5000 DMP has three options in pitch size, 8, 6 and 16 pitch, with additional accessories currently in development. It is no wonder that Techcon Systems is a leader in fluid dispensing innovation.
Features:
- Disposable feed path – no cleaning required
- Feed path can be changed in seconds
- Choice of 16 pitch, 8 pitch and 6 pitch feed screwsIdeal for 2-part and abrasives fluids
- UV compatible
- Closed-loop motor control with encoder feedback (encoder version)

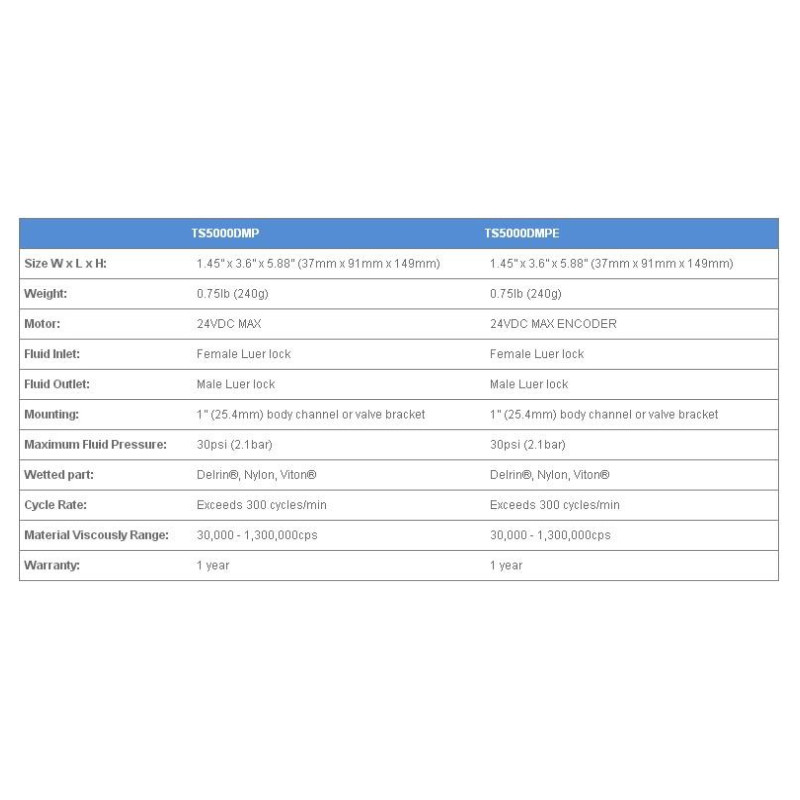

Specifications:- Size W x L x H: 1.45” x 3.6” x 5.88” (37mm x 91mm x 149mm)
- Weight: 0.75lb (240g)
- Motor: 24VDC MA
- Fluid Inlet: Female Luer lock
- Fluid Outlet: Male Luer lock
- Mounting: 1” (25.4mm) body channel or valve bracket
- Maximum Fluid Pressure: 30psi (2.1bar)
- Wetted part: Delrin, Nylon, Viton
- Cycle Rate: Exceeds 300 cycles/min
- Material Viscously Range: 30,000 - 1,300,000cps
- Warranty: 1 year
Available Configurations:Spare Parts:- DMP6-10
- DMP8-10
- DMP16-10
- DMP6R-10
- DMP8R-10
- DMP16R-10
