The perfect tool for flexible and easy surface treatment in industrial environments.
High-efficient plasma handheld device for surface treatment. Ergonomically optimized for safe operation.
OperationSurface optimizing prior to gluing or printing is important. The Plasmatool® makes chemical primers or mechanical treatments unnecessary. Improved wettability and adhesive force can be achieved at components, which cannot be handled automatically due to size or mobility. The Plasmatool® is supplied by a single 230 V power source. An integrated air compressor supplies the plasma generator.

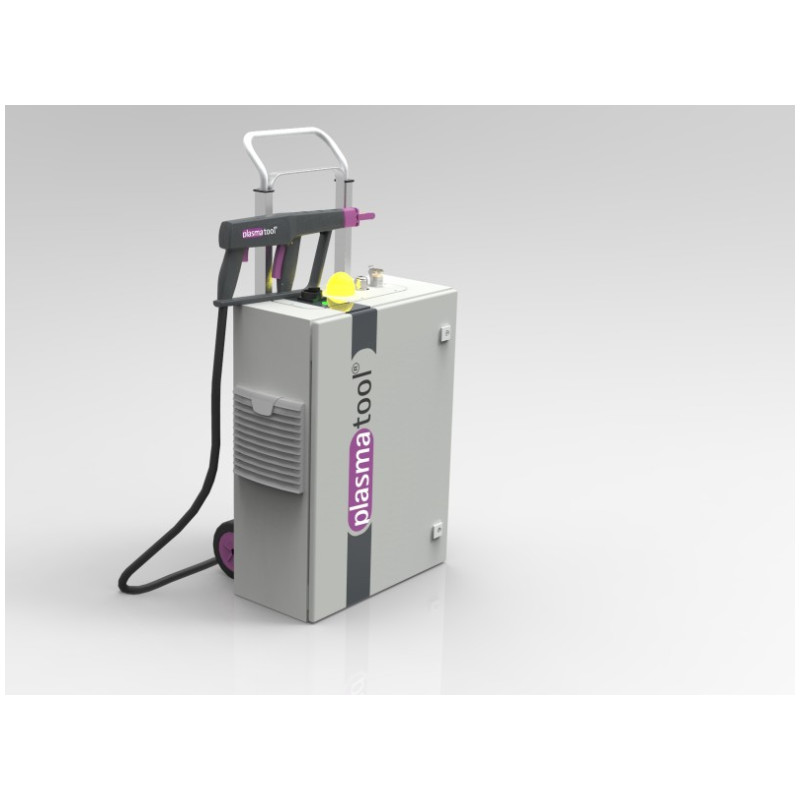

DesignThe Plasmatool® can be used everywhere thanks to the trolley design. Two-handed operation and a signal lamp protect and warn the operators and third parties. The handling of the Plasmatool® is optimized for easy usage and maximum operator´s safety.
Gas supplyNo external gas supply has to be present. Completely autonomous air supply is integrated inside the device. The operator is independent of any compressed air supply.
Features- Different processes / substrates / geometries
- No PLC necessary
- Stand-Alone unit, no compressed air or mass flow control required
- Single person handling thanks to trolley design
- Two-handed operation and signal lamp for advanced safety
- Robust and easy to use
- Only power outlet needed
Technical Information- Electrical connection 220 – 240 V AC, 50 – 60 Hz
- Max. input current 6 A
- Power consumption 1.300 W
- Weight approx. 60 kg
- Measurements 800 mm x 540 mm x 430 mm
- Sound pressure level <60 dB
