The piezobrush® PZ3 has been developed as a compact plasma handheld device for use in laboratories, pre-development
and assembly of small series. With a maximum power consumption of 18 W, cold active plasma with a temperature
of less than 50°C is generated using Piezoelectric Direct Discharge (PDD®) technology. The heart of this handy plasma
device is the piezo plasma generator TDK CeraPlas™ - a high-voltage transformer for generating cold atmosphericpressure plasma.
Fields of application- Joining technology
- Development and optimization of production processes
- Research facilities and laboratories
- Microbiology, microfluidics and food technology
- Medical and dental technology
- Prototype and architectural model making
- Small-scale production
Possible use cases - Activation and functionalization of surfaces of various materials
- Optimization of bonding, painting, printing and coating processes
- Surface treatment of plastics, glass, ceramics, metals, semiconductors, natural fibres and composite materials
- Ultra-fine cleaning and odor reduction
Technical details - Electrical connection: 110-240 V / 50-60 Hz
- Power consumption: max. 18 W
- Weight: 110 g
- Plasma temperature: < 50 °C
- Treatment speed: 5 cm²/s
- Typical treatment distance: 2 – 10 mm
- Typical treatment width: 5 – 29 mm

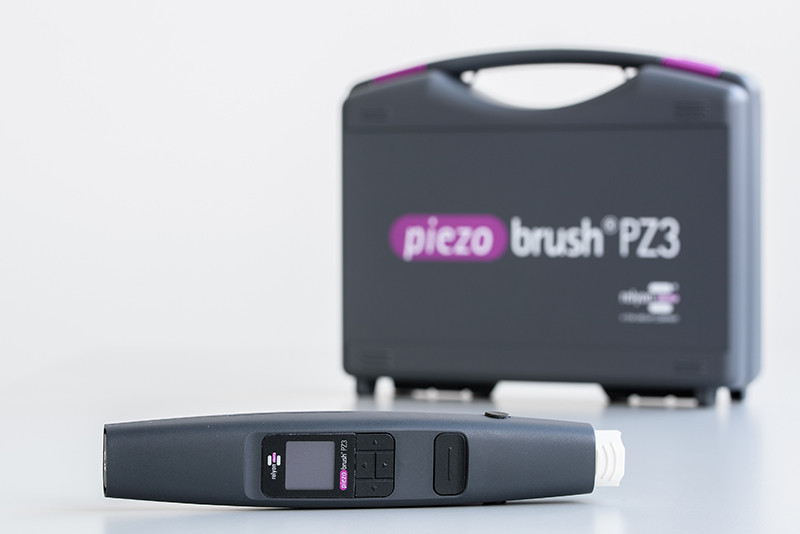

piezobrush® PZ3 - the world\'s smallest plasma handheld device
