LED POWERLINE AC/IC 820 HP

Odeslat dotaz na tento produkt

LED Powerline AC-IC 820 HP is an air cooled high-performance UV LED array for intermediate curing (pinning), final curing for printing applications as well as curing of varnishes or UV-reactive adhesives and pottings.
LED Powerline AC/IC is available in wavelengths of 365/385/395/405 nm +/- 10 nm. This variety allows to adjust the wavelength perfectly to any application.
Integrated air-cooling guarantees a reliable continuous operation over the whole ambient temperature area, without depending on huge external heat exchangers.
For larger irradiation widths, LED Powerlines are stackable without gap to any lengths.

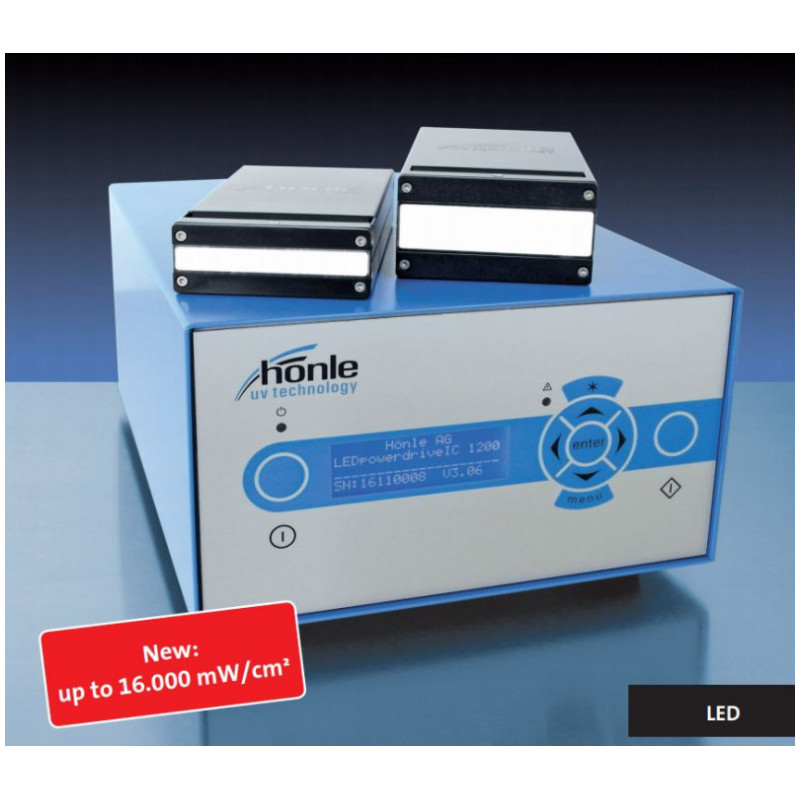

The power supply and control of the LED Powerline AC/IC can be done either by the optionally available LED power drive IC or by an external power supply and PLC signals.

Pdf:

• LED powerline ac ic 410 820 hp with powerdrive en 2021.pdf
