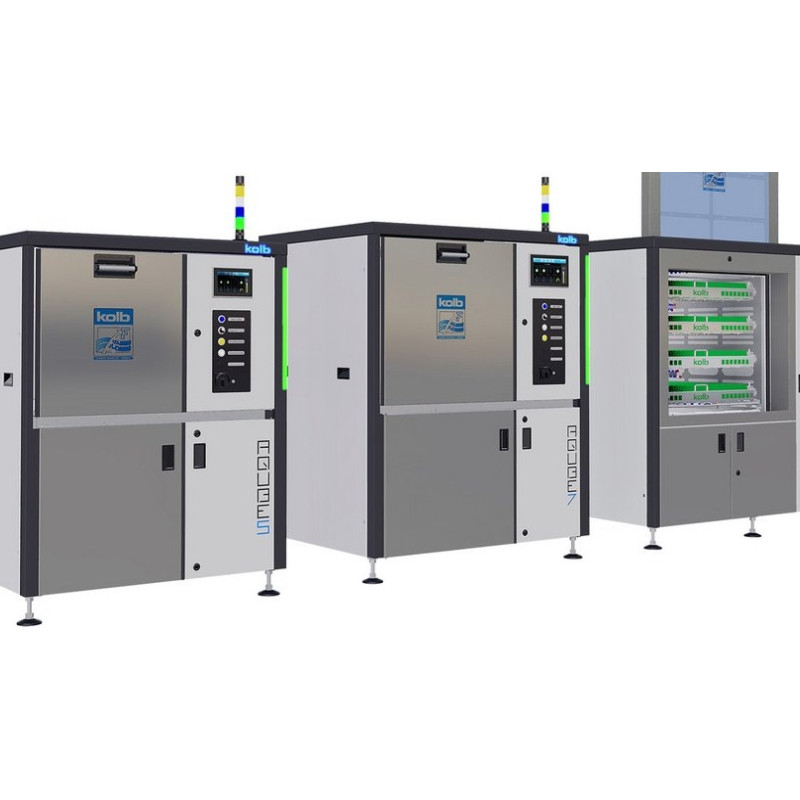

AQUBE® X series is designed for the ultrafine cleaning of PCBs, DCBs, hybrids, SDIs, SIPs
The new kolb AQUBE® systems are next-generation cleaning systems - even more efficient, even more compact, easy to handle and maintain, pre-equipped for extended water management and ready for the smart factory (SF ready).
The systems of the kolb AQUBE® XH series offer ultra fine cleaning for highest demands such as the process safe cleaning of DCBs, PCBs, SiPs, HDI boards, hybrids and misprints from contaminations such as fluxes, rosin, resin, copper, Cu oxide and solder-support substances. AQUBE® XH systems clean up to 830 (19 m²) eurocards in up to four variable horizontal drawer baskets (relative cleaning time per board: approx. 6.5 seconds).
The three tank systems with three separate circuits and a fully automatic up to 5step process (1. Cleaning, 2. MediumWipe®, 3. Rinsing (tap water), 4. DI-rinsing with continuous DI-water processing, 5. Drying) are extremely compact and run with very low operating costs.
AQUBE® XH5
Fully automatic high end assembled PCBs batch cleaner
Capacity: up to 176 (2.8 m²/30 ft²) standard eurocards in up to two variable drawer baskets
PolyPower® Technology (up to three times more pressure power and up to 30% less cycle time)
Horizontal up to fourfold spray rotors, VMH® TurboDigital evaporative drying
Process chamber dimensions: W 540 • D 590 • H 570 mm (W 21.25" • D 23.22" • H 22.44")
AQUBE® XH7
Fully automatic high end XL batch cleaner for assembled PCBs
Capacity: up to 540 (8.6 m² / 92.5 ft²) standard eurocards in up to three variable drawer baskets
PolyPower® Technology (up to three times more pressure power and up to 30% less cycle time)
Horizontal up to sixfold spray rotors, VMH® TurboDigital evaporative drying
Process chamber dimensions: W 700 • D 720 • H 710 mm (W 27.55" • D 28.34" • H 27.95")
AQUBE® XH9
Fully automatic high end batch cleaner with largest process chamber worldwide
Capacity: up to 830 standard eurocards equals 19 m² (204.5 ft²) in up to four variable drawer baskets
Horizontal up to eightfold spray rotors, VMH®-TurboDigital evaporative drying
Process chamber dimensions: W 970 • D 955 • H 900 mm (W 38.18" • D 37.59" • H 35.43")
