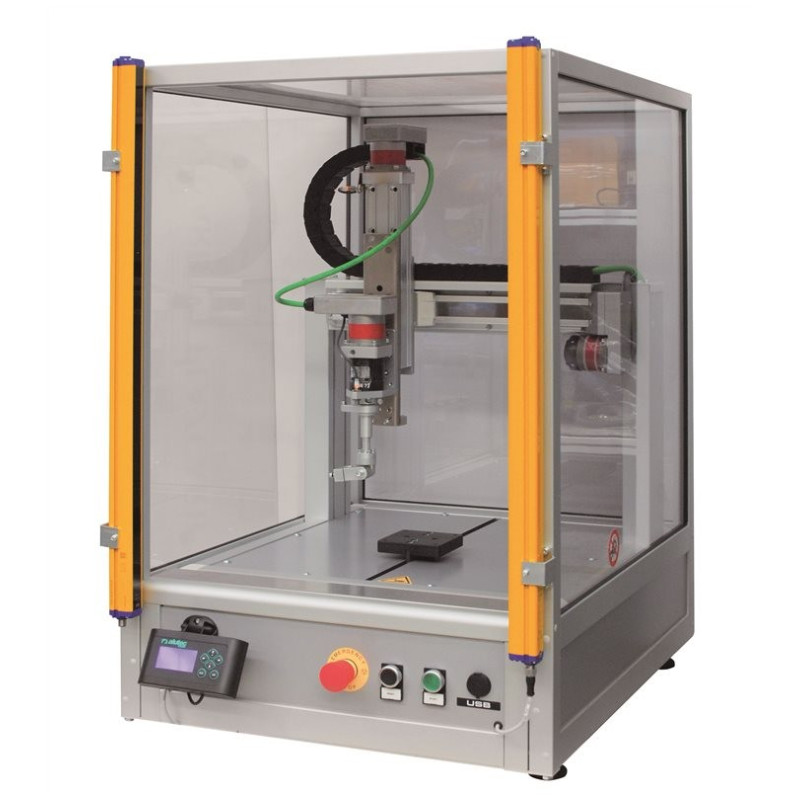

AEB WRa300 is a Cartesian robot with three and four interpolated axes and work area of 320x320mm; it is extremely flexible and ensures high precision and repeatability of the operations. The mechanical part consists of screw axes with linear and rugged ball bearing guides and the self-bearing structure is made of aluminium profiles.
WR300 is controlled by a groundbreaking motion control system called ALPHA by AEB Robotics, which, combined with the new proprietor software ALPHA, guarantees reference performances and new functions, for both stand-alone operation and for the communication of the robot with external systems (CANopen , serial RS232 or with 16 general purpose input/Outputs), which are available even in the standard version.
The robot is programmed from the PC and subsequently controlled via the operator panel ALPHA CP, supplied with it, and can manage up to 100.000 points split-up into 255 work programs. The user-friendly graphic interface, the possibility to import files in .dxf, Gerber or Excel format and the new SUB-PROGRAMS function allow you to fulfil extremely complex operations, very quickly.
As for the dispensing applications, the 3D interpolation, the continuous path function, the automatic calibration system and the high mechanical precision guarantee utmost execution quality.WR300 is supplied complete with safety guards and EC type-approvals.
Technical Data: - Axes Motion System: Balls screw 3-4 axes system
- Operating Range: X 300 mm, Y 300 mm, Z 145 mm
- Programming: Remote mode (self-learning) through PC software, Profiles imported from DXF, Excel and Gerber files
- Interpolation: Linear and 3D circular on X,Y,Z Point-to-point and Continuous path
- Control: ALPHA CP RS232 CanOpen® I/O
- Available I/O: 16 I/O General purpose
- PTP Speed: 1 - 400 mm/sec X, Y, Z
- Transportable Load: X and Y axis = 10 kg, Z axis = 5 kg/ 3 kg with wrist
- Repeatability: ±0,015 mm
- Axis Motions System: 4 μm
- Dimensions: 600 x 635 x 930 mm
- Weight: 49 Kg
