Casting Compound, Potting, Structual ApplicationBase:
beige Viscosity (mPas):
30,000 - 45,000Temp. Resistance (ºC):
-40 to +200Curing:
3 h at 80 °C | 5 min at 130 °CCharacteristics:
Good Chemical Resistance, High Tensile Strength,
Well Suited for Parts with Similar CTE, Limited Material Flow before Hardening

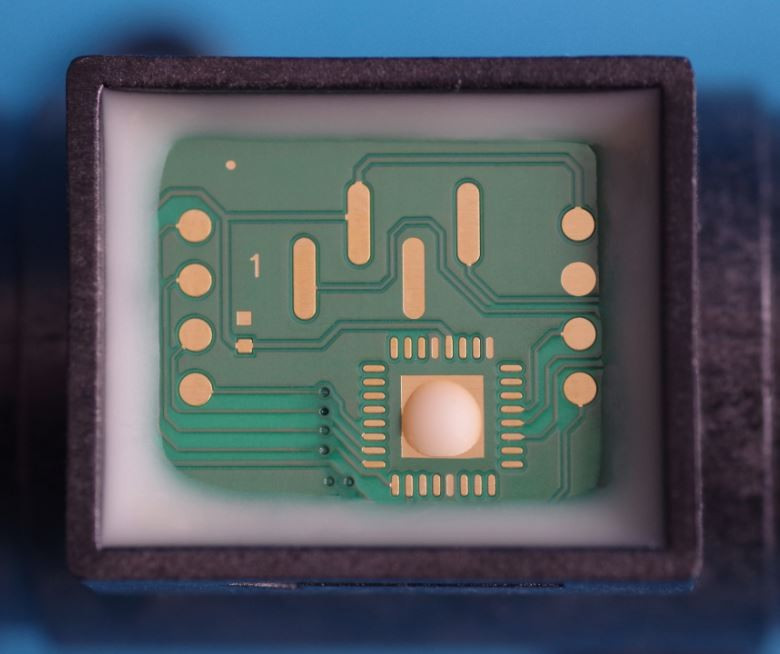

Structalit® 8801 is a single-component adhesive based on epoxy resin. Due to its viscosity characteristics it is perfectly suited as a potting or filling material. The beige-coloured adhesive possesses high chemical resistance against common cleaning agents used for medical devices, including isopropyl alcohol. It develops high bond strength with ceramics, metals and many plastics. For example, Structalit® 8801 is successfully being used as a potting compound for sensors in medtech devices.
Structalit® 8801 cures very quickly at low oven temperatures. At 100°C this adhesive will fully cure in only a few minutes.
For applications in medical devices
Structalit® 8801 is certified according to ISO 10993-5 standards. The adhesive is 100% solvent free and compatible with common sterilization processes such as autoclaving, gamma irradiation, E-beam and EtO.PANACOL Structalit 8801
